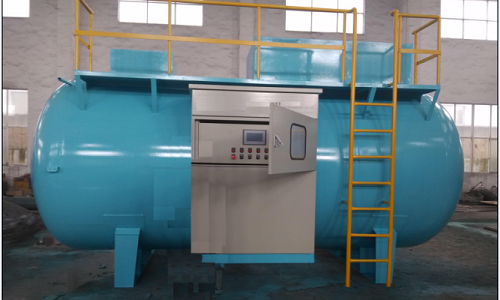

MBR Domestic/Industrial/Hospital Sewage Treatment Plant

Product  parameter

Influent and effluent water quality

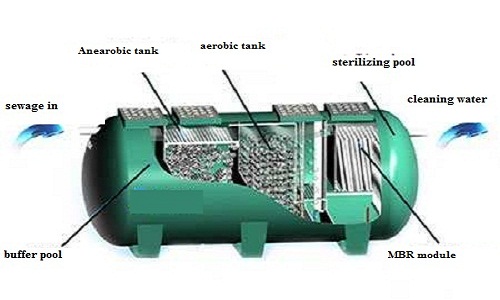

1.GRILLE

Install Manual grille or mechanical grille in the channel,they can remove large particles in the waste water,such as plastic bag,Pericarp,Remnant,etc.

2.suffer tank

This tank is used to adjust the wastewater quantity and quality in different time,make sure the influent water have the same quality, which will better for the following treatment.

3.Anaerobic tank

The anearobic tank uses anaerobic bacteria to hydrolysis, acidate and methanated the COD and BOD. Remove organic matter in waste water, and improve the biodegradability of sewage, is conducive to the subsequent aerobic treatment.

4.MBR bio-reaction tank

MBR bio-reaction tank and aerobic tank can be combined together.The role of aerobic tank is to make activated sludge to take on aerobic respiration,further decomposition of organic matter into inorganic matter.MBR bio-reaction tank trap activated sludge and other matters,clean water will be suck out by sucking pump.

5.Sludge tank

there are set sludge collecting hopper and sludge pipeline in sludge tank bottom, in order to convenient for sludge concentration, set weir water tank in top, there open mud discharge inlet in bottom, rely on static pressure automatic discharge mud.

Function and application scope:

Function:
1).Already existing sewage treatment plant,running water factory upgrade,reform
2).Municipal sewage treatment plant,running water factory new instruction
3).pure water production pretreatment
4).Reuse of reclaimed water

Application scope:
1).Hotel,restaurant,community etc domestic sewage treatment recycle
2).Industrial and mining enterprises,remote village,sentry ,tourist area etc domestic sewage recycle.
3).Each kind of industrial sewage (similar to domestic sewage) :such as hospital sewage,pharmaceutical sewage ,washing sewage,food sewage etc.
