MBR membrane bioreactor module-Flat sheet

type:flat sheet
N=100-150
material :PTFE/PVDF
Product description: MBR membrane bioreactor module The Membrane Bioreactor MBR Module Sewage Treatment is a combined technology of activated sludge process and membrane solid-liquid separation process.
INQUIRY

MBR membrane bioreactor module

Introduction

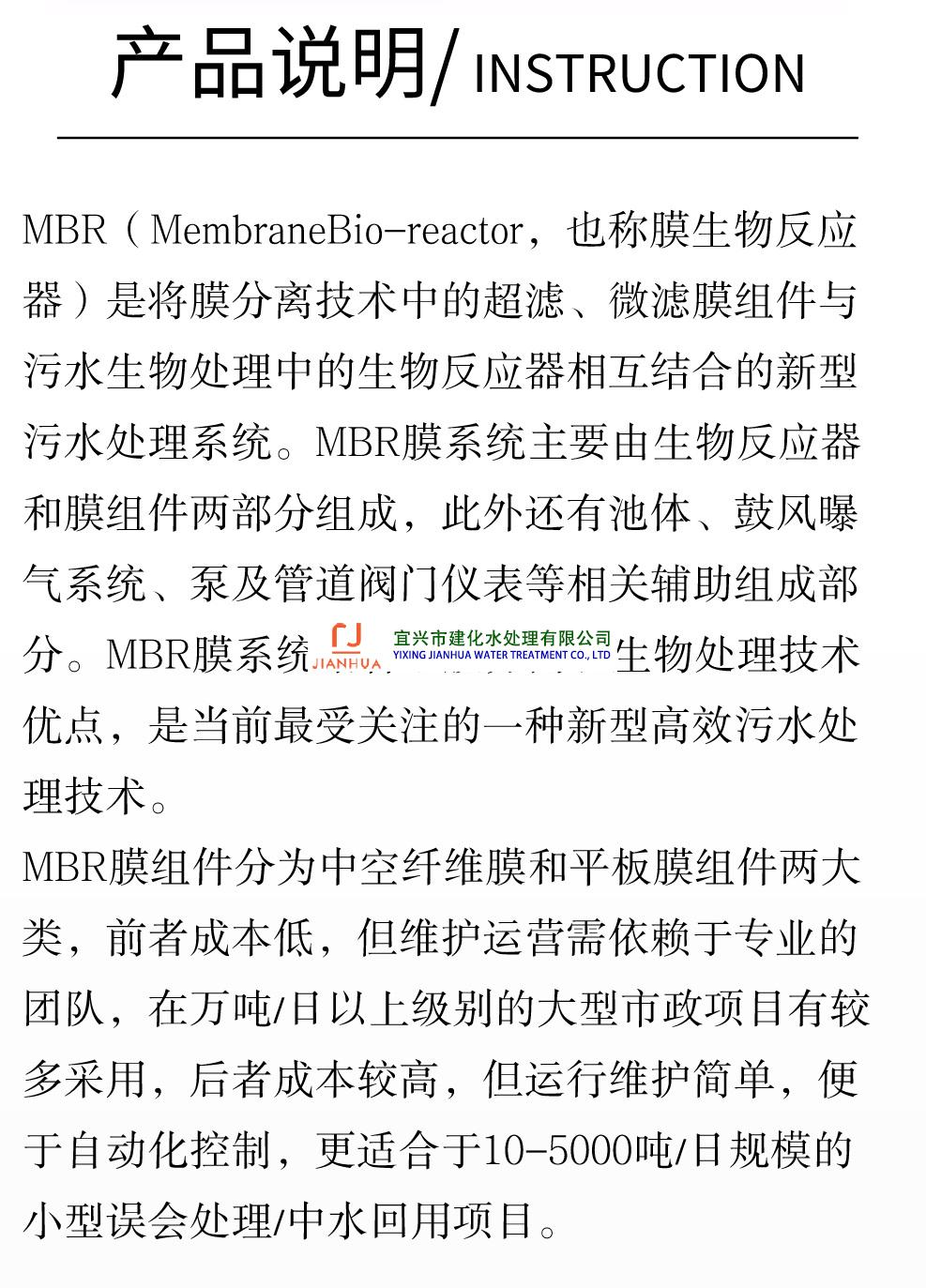

The Membrane Bioreactor MBR Module Sewage Treatment is a combined technology of activated sludge process and membrane solid-liquid separation process.

Advantages

Easy to clean
High efficiency / Low maintenance
Membrane modules are back flushable
Yield 60-80% less sludge than conventional system
Compact design – footprint 75% smaller than conventional
Possibility of direct and indirect water reuse

Parameters

Membrane Bioreactor MBR sheet (pcs.)

Parameters	J90	J150
Effective membrane area (m²)	0.9	1.5
Overall size(LBH)(mm)	10305106	16505106
Membrane pore size(μm)	0.2~0.4
Membrane material	PTFE/PVDF
Water yield (L/pcs·day)	450~630	750~1050
Effluent turbidity (NTU)	<1.0
Suspended solids in effluent (SS,mg/L)	<1.0

Model (All customized models are available by online inquiry)

Parameters	J90-100	J90-150	J150-100	J150-150
Number of membrane elements (pcs.)	100	150	100	150
Effective membrane area (m²)	90	135	150	225
Treatment capacity (m³/d)	45	67.5	75	112.5
Aeration capacity(m³/min)	1~1.2	1.5~1.8	1.5~2	2.25~3
Frame material	Stainless steel 304
Diffuser pipe material	Stainless steel 304/UPVC/ABS
Collection pipe material	UPVC
