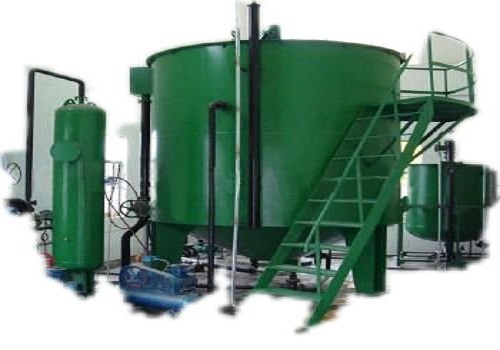

shallow air flotation-LQ round

Description:
Dissolved Air Flotation YF series is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

Application:
1 Separate small particles and algae in groundwater.
2 Recover valuable products in industrial sewage such as paper pulp.
3 Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

Features:
1 Large capacity, high efficiency and small occupying space.
2 Compact structure, easy operation and maintenance.
3 Silt expansion elimination
4 Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
5 It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.

Technical Parameter
Air flotation equipment can be divided into following specifications according to the different capacity: 5, 10, 20, 30, 40, 50, 60, 80, 100, 150, 200, 250, 300m3/h etc. Also it can be designed by customer's requirement.

1. Clear water reservoir 2. Clear water pump 3. Control valve 4.5. Pressure gage 6. Dissolved gas tank 7. Control valve 8. Air compressor 9. Releaser 10. Foam scraper 11. Air floating pond 12. Water collector 13. Jet device 14. Control valve 15. Dosing tank 16. Sewage pump 17. Flow meter 18. Sewage tank
