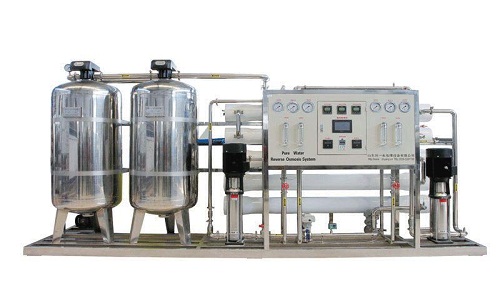

Reverse Osmosis Water treatment System for medium or high pressure boiler feed water

usage: medium or high pressure boiler feed water
material:stainless steel
capacity:100t
Product description: Reverse Osmosis Water treatment System for medium or high pressure boiler feed water used in Thermal Power Plant, chemical plant, and boiler feed water of large or medium industrial and mining ente
INQUIRY

1.description

RO-G type Reverse Osmosis Water treatment System for medium or high pressure boiler feed water is used in Thermal Power Plant, chemical plant, and boiler feed water of large or medium industrial and mining enterprises

using advanced American RO membrane ,high pressure vessel, high pressure pump, with high efficient pre-treatment system, RO-G type Reverse Osmosis Water treatment System can produce desalted water, it reaches at boiler feed water stander.

2.treatment process

Raw water----raw water pump -----multi medium filter--- active carbon filter---add reductant----add scale inhibitor----precision filter----high pressure pump---RO system----CO² deaerator tower ----middle water tank---middle pump----mixed bed ion-exchanger----desalted water tank

3.operating parameter

Production capacity:10m3/H-200m3/H.set

Rate of desalination:98%

Run pressure:1MPa-1.5MPa

Rate of recovery:75%-80%

4.type and specification

ModelNo.	Capacity (M³/H)	Powerof motor (kw)	weight (kg)	Size: LX W X H (mm)
RO-G-10	10	11	800	3600X875X2000
RO-G-15	15	16	840	4200X1250X2000
RO-G-20	20	22	1540	4200X1250X2200
RO-G-30	30	37	2210	6600X1000X2200
RO-G-40	40	45	2370	6600X1000X2000
RO-G-50	50	55	3500	6600X1625X2000
RO-G-60	60	75	3950	6600X1625X2000
RO-G-80	80	90	4500	6600X1800X2000
RO-G-100	100	110	5700	6600X2200X2000
